Sinri products are widely used in new energy automotive industry, outdoor communication systems, marine ship flying, chemical packaging, lighting, outdoor security systems, military equipment, instrumentation, medical equipment, sensors, household appliances, photovoltaic solar, LED, consumer Electronics, microfiltration, electronic heating equipment and other fields.

From July 2016, Sinri began to export its products to the international market for export to more than 150 countries in the world including Korea, India, Germany, the United States, the United Kingdom, Egypt, France, Switzerland, Italy, Spain, Finland, Brazil, Singapore and Turkey.


Solution

T LED type tube, LED lights and other small LED lamps are faced with the problem:

1、Long time dust accumulating and covering compromises the performance;

2、Ingress of rain, fog and particle accelerates the aging of components;

3、Protecting rate decline increases the cost of maintenances.Protective vent solution for lighting from SinRi.

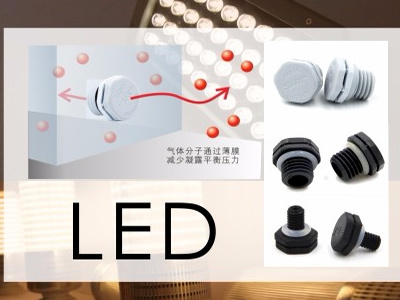

SinRi Technology provides lighting protection solutions:

1、Water and dust resistance avoiding enclosure from getting contaminating, thus protecting the components;

2、Vapor permeability and water resistance keeping the enclosure dry and avoiding condensation from effecting the performance;

3、Porous structure rapidly balancing the pressure and effectively reducing the crystallization;

4、To maintain ex-factory protective rate and enhance the service life and quality。

Led Industry

Protective products

M3-M8 small waterproof and breathable products

M3*0.5 waterproof breathable valve aluminum alloy

 Air permeability:50ml/min p=10kpa

 Protection level:IP67(Customizable)

 proper temperature:-40℃-150℃

 Water blocking pressure:-12kpa

 Waterproof level:UL94VO

 Overall height:7mm

 Installation depth:5mm

 Thread size/color:Customizable

 Specification:M3*0.5

 Model:SV-MOAM03P3B-O05L

 Material:A6063+E-ptfe(Black)

M4*0.7 waterproof breathable valve stainless steel

 Air permeability:115ml/min p=10kpa

 Protection level:IP67(Customizable)

 proper temperature:-40℃-150℃

 Water blocking pressure:-12kpa

 Waterproof level:UL94VO

 Overall height:12mm

 Installation depth:6mm

 Thread size/color:Customizable

 Specification:M4*0.7

 Model:SV-MOSM04P3B-AO6L

 Material:A303+E-ptfe(True color)

M5 overmolded long teeth

 Air permeability:160ml/min p=10kpa

 Protection level:IP67(Customizable)

 proper temperature:-40℃-150℃

 Water blocking pressure:-12kpa

 Waterproof level:UL94VO

 Overall height:12mm

 Installation depth:8mm

 Thread size/color:Customizable

 Specification:M5*0.8

 Model:SV-PO1M05P3A-B38F

 Material:PA66+10%GF(Black)

M5 overmolding short teeth

 Air permeability:115ml/min p=10kpa

 Protection level:IP67(Customizable)

 proper temperature:-40℃-150℃

 Water blocking pressure:-12kpa

 Waterproof level:UL94VO

 Overall height:7mm

 Installation depth:5mm

 Thread size/color:Customizable

 Specification:M3*0.5

 Model:SV-MOAM03P3B-O05l

 Material:A6063+E-ptfe(Black)

M5 overmolded gray long teeth

 Air permeability:160ml/min p=10kpa

 Protection level:IP67(Customizable)

 proper temperature:-40℃-150℃

 Water blocking pressure:-12kpa

 Waterproof level:UL94VO

 Overall height:12mm

 Installation depth:8mm

 Thread size/color:Customizable

 Specification:M5*0.8

 Model:SV-PO1M05P3A-B18F

 Material:A6063+E-ptfe(Gray)

M5*0.8 metal parts
A6063 black small front page

 Air permeability:185ml/min p=10kpa

 Protection level:IP67(Customizable)

 proper temperature:-40℃-150℃

 Water blocking pressure:-12kpa

 Waterproof level:UL94VO

 Overall height:12mm

 Installation depth:6.5mm

 Thread size/color:Customizable

 Specification:M5*0.8

 Model:SV-MOAM005P38-B36L

 Material:A6063 Anodizing(Black)

M5*0.8 metal parts
A6063 black small front page

 Air permeability:185ml/min p=10kpa

 Protection level:IP67(Customizable)

 proper temperature:-40℃-150℃

 Water blocking pressure:-12kpa

 Waterproof level:UL94VO

 Overall height:15mm

 Installation depth:6.5mm

 Thread size/color:Customizable

 Specification:M5*0.8

 Model:SV-MOAM05P3B-B36L

 Material:A6063 Anodizing(Black)

M5*0.8A6063 Standard edition

 Air permeability:185ml/min p=10kpa

 Protection level:IP67(Customizable)

 proper temperature:-40℃-150℃

 Water blocking pressure:-12kpa

 Waterproof level:UL94VO

 Overall height:12mm

 Installation depth:6.5mm

 Thread size/color:Customizable

 Specification:M5*0.8

 Model:SV-MOAM05P3B-B061

 Material:A6063+E-ptfe(True color)



M10-M12 medium waterproof and breathable products

M10*1.0 molding black

 Air permeability:480ml/min p=10kpa

 Protection level:IP67(Customizable)

 proper temperature:-40℃-150℃

 Water blocking pressure:-12kpa

 Waterproof level:UL94VO

 Overall height:16mm

 Installation depth:10mm

 Thread size/color:Customizable

 Specification:M10*1.0

 Model:SV-PO3M10P3B-C30F

 Material:PC+E-ptfe(Black)

M10*1.0 one time forming gray

 Air permeability:480ml/min p=10kpa

 Protection level:IP67(Customizable)

 proper temperature:-40℃-150℃

 Water blocking pressure:-12kpa

 Waterproof level:UL94VO

 Overall height:16mm

 Installation depth:10mm

 Thread size/color:Customizable

 Specification:M10*1.0

 Model:SV-PO3M10P3B-C10F

 Material:PC+E-ptfe(Gray)

M10*1.0A6063 Standard Edition

 Air permeability:800ml/min p=10kpa

 Protection level:IP67(Customizable)

 proper temperature:-40℃-150℃

 Water blocking pressure:-12kpa

 Waterproof level:UL94VO

 Overall height:20mm

 Installation depth:10mm

 Thread size/color:Customizable

 Specification:M10*1.0

 Model:SV-MOAM10P3B-C00L

 Material:A6063Bright silver(True color)

M12 overmolded gray

 Air permeability:800ml/min p=10kpa

 Protection level:IP67(Customizable)

 proper temperature:-40℃-150℃

 Water blocking pressure:-12kpa

 Waterproof level:UL94VO

 Overall height:16mm

 Installation depth:10mm

 Thread size/color:Customizable

 Specification:M12*1.5

 Model:SV-PO1M12P3A-E10F

 Material:PA66+10%GF(Gray)

M12 overmolded black

 Air permeability:800ml/min p=10kpa

 Protection level:IP67(Customizable)

 proper temperature:-40℃-150℃

 Water blocking pressure:-12kpa

 Waterproof level:UL94VO

 Overall height:16mm

 Installation depth:10mm

 Thread size/color:Customizable

 Specification:M12*1.5

 Model:SV-PO1M12P3A-E30F

 Material:PA66+10%GF(Black)

M12*1.5 metal parts stainless steel standard version

 Air permeability:850ml/min p=10kpa

 Protection level:IP67(Customizable)

 proper temperature:-40℃-150℃

 Water blocking pressure:-12kpa

 Waterproof level:UL94VO

 Overall height:20mm

 Installation depth:10mm

 Thread size/color:Customizable

 Specification:M12*1.5

 Model:SV-MOSM12P3BB-E00A

 Material:S303(True color)

Application

The Sinri EPV series of explosion-proof valve venting components can be easily operated manually

by simply screwing them into the ventilated cavity aperture to meet the explosion-proof requirements

of any performance range for specific environmental needs.

1

Advantage

1.Increase mean time between failures

2.Low maintenance cost

3.Less space required

4.Optimize the structure of the part

5.Support technology upgrade
